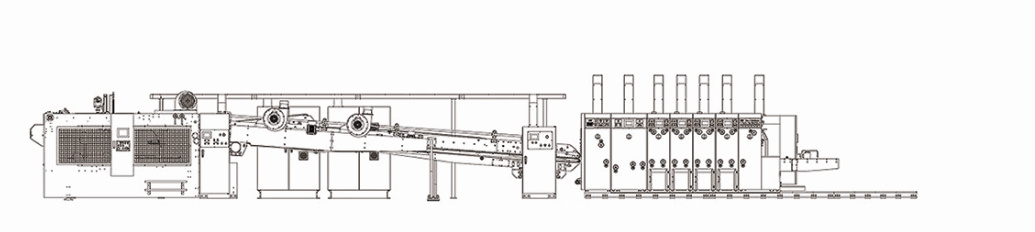

全自動高速印刷開槽模切糊箱聯動線(上印、下折式)
Automatic High Speed Print Slot Die Cut Gluing Folding Joint Production Line(UpPrint、Down Fold)
功能與特點:
★整機采用一體化控制技術,印刷、糊箱聯機操控,訂單統一管理、調閱,提高生產效率。
★完善的跟蹤檢測技術,當粘箱部出現卡紙等故障時,印刷機會自動停止送紙功能。
★紙板向下折疊方式。
★兩側糾偏皮帶分別調速,有效糾正魚尾現象。
★上堆積方式的計數推出部。
★由三組伺服電機共同構成高速運行下精確計數、堆積、輸出功能。
Function and characteristic:
machine automaticaly stop feeding function.
★Cardboard folding down.
★Both sides of the rectying belt respectively speed adjustment. efectively correct the phenomenon of fish tail
★Counting outputl department is adopt up stacking type.
*The machine adopts integrated control technology. printing,. glue box on Ine control, order managoment, vew.improdve production efficiency.
★*Pertect tracking and detec15553666.61tion technology, when the glue box department jammed cardboard and other fauts,the printing2
★By three sets of sevo motor together to form a high speed operation of accurate counting, stacking.output
function.
技術參數 The Machine technique parameter:
項目 | Project | 920 | 924 | 1224 | 1228 | 1426 | 1628 |
見高機械速度(張 分鐘) | Maxspeed (pcs/min) | 300 | 260 | 260 | 200 | 180 | 160 |
送紙精度 | Feedingprecision (mm) | 土1 | |||||
見小送紙尺寸 (mm) | MinSheetsize(mm) | 300x600 | 420x600 | 450x600 | |||
正常送紙量大尺 寸 | Maxsheetize(mm) | 860x2100 | 860x2500 | 1150x2500 | 1150x2900 | 1350x2700 | 1500x2900 |
陽張送研尺寸 (mm) | SkipSheetize(mm) | 1200x2100 | 1200x2500 | 1500x2500 | 1500x2900 | 1800x2700 | 2000x2900 |
最大印制喜積 (mm) | Maxprintingurea (mm) | 900x2000 | 900x2400 | 1200x2400 | 1200.2800 | 1400x2600 | 1600x2800 |
E印制情文 | Printingprecision (mm) | 土0.5 | |||||
印版厚度 | Platethickness (mm) | 7.2 | |||||
最小開情問廂 (mm Mimumsicitance (mm) | 正力positveinite (mm) | 130x130x130x130 | 140x140x140x140 | 150x150x150x150 | |||
反刀negatheknifle (mm) | 230x65x230x65 | 240x70x240x70 | 240x75x240x75 | ||||
最大開槽深度 (mm) | Maxslotdepth(mm) | 230 | 300 | 360 | 400 | ||
(可增加刀片加大開情深度)increasethebleadencreasethesiotdeph | |||||||
開槽精度 (mm) | Slottingprecion (mm) | 土1 | |||||
最大模切尺寸 (mm) | Maxdecuttingite (mm) | 900x1950 | 900x2400 | 1200x2400 | 1200x2800 | 1400x2600 | 1600x2800 |

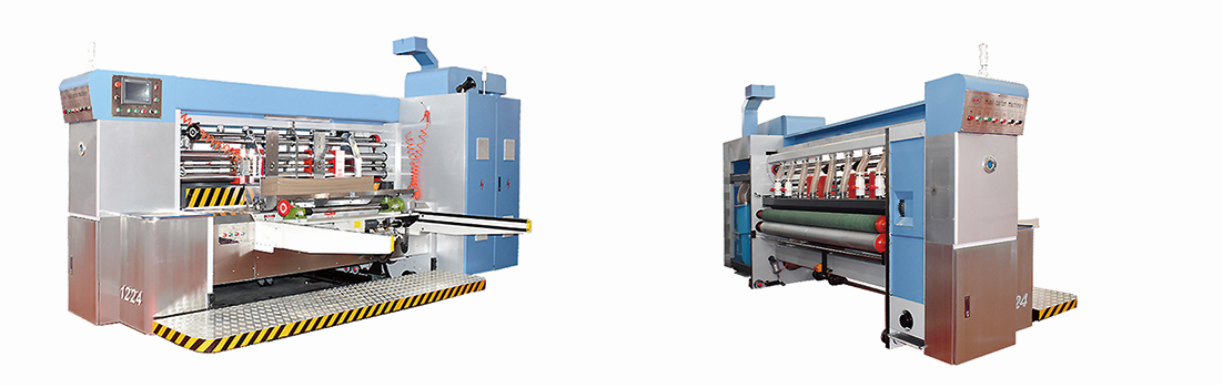

★真空吸附前緣送紙,變頻調控風量,增加紙板輸送穩定性、
準確性。
maintenance.
★快換式送紙膠棍機構,包裹軟橡膠,經久耐用,設備維護方便。
★雙排送紙膠棍傳送,提高送紙精度。
★吸風除塵系統,可大量清除紙板表面紙屑粉塵,提高印刷品質。
printing quality.
★左、右側擋板、后托板均為電腦操控,精密導向機構,位移平
穩,附帶側拍功能。
★選配伺服前緣、免壓送紙系統。
★L(fēng)eading edge paper feeding adopt Vacuum adsorption , frequency conversion control air
Volume ,increase paperboard conveying stability and accuracy.
★Quick-change paper feeding roller mechanism, wrapped in soft rubber, durable ,easy
Double-row paper feed roller to improve the accuracy of paper feeding.
★Suction and dust removal system can remove paper dust from cardboard surface and improve
★L(fēng)eft and right baffles and rear pallets are all computer controlled, precision gulding mechanism,
stable displacement .with side shooting function.
Optional :servo leding edge, pressure less paper feeding system.

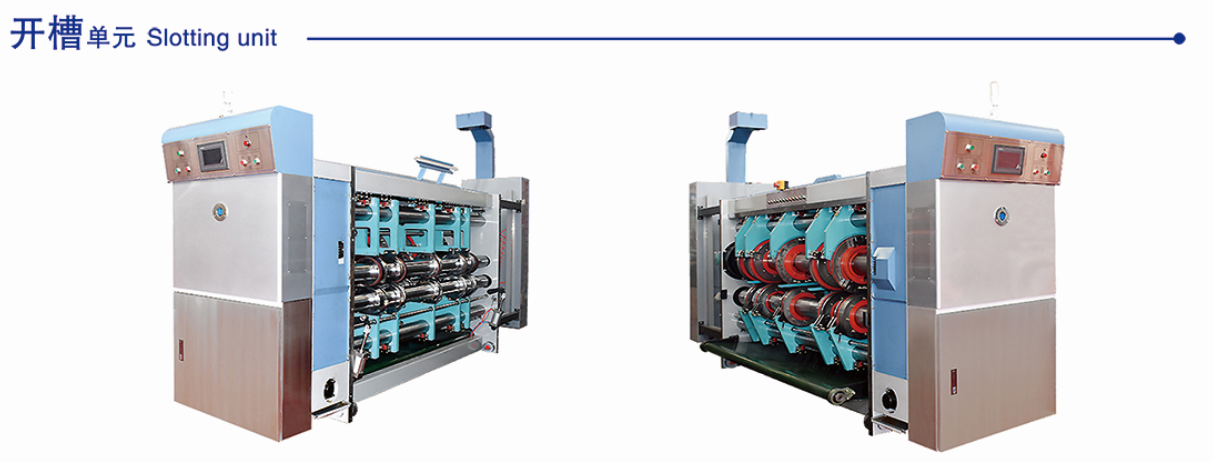

★開槽刀輪形式:雙刀單軸式。
★合金鋼材料經熱處理研磨鋸齒形開槽刀片,硬度和韌性具佳。
★壓線輪、刀座橫移、相位調整、復位等均可電腦控制(自動或手動)
電動控制,換單迅速。
★上下刀聯動,具備切刀入槽定位功能,確保刀座左右調整同步移動
分離式下刀片,保養及更換方便,延長切刀壽命。
★預壓傳送,預壓輪表面包裹優力膠,避免對紙板的損傷。
★壓線輪內嵌優力膠,壓線輪橫移位置可隨開槽刀座同時調整。
★中刀橫向位移結構,生產適應性廣。
★彈性切角刀結構,三層、五層紙板切角無需調整。
★精密直線導軌,配合滾珠絲杠,使開槽刀座移動更靈活、準確。
★選配雙刀雙軸開槽單元。
Slotted cutter wheel form: double blade single shaft.
★Ally steel material is heat treated and ground with serrated slot blade, good hardness and
toughness.
★Pressure wheel, blade holder traverse move, phase adjustment, reset, etc.All adopt computer
control(automatic or manual) electric control,change orders quickly.
★The upperand lower knives are move together,and the cutter is positioned in the slot to
ensure thesynchronous movement of the left and right sides of the knife seat.The separate
lower blade is convenient for maintenance and replacement, and thelife of the cutter is extended.
★Pre-pressure transmission,the surface of the pre-pressing wheel is wrapped with superior
rubber.avoid damage the cardboard.
★The pressure line wheel is embedded with rubber,and the position of the pressure line wheel
can beadjusted simultaneously with the slotted tool holder.
★Medium knife lateral displacement structure,wide adaptability to production.
*Flexible corner cutterstructure, three-layer, five-layer cardboard cuitting angle does not need to
beadjusted.
★Precision linear guide, with ball screw,makes the slotted tool holder move more flexible andaccurate.
Optional:double-pole double -axis slotting unit.

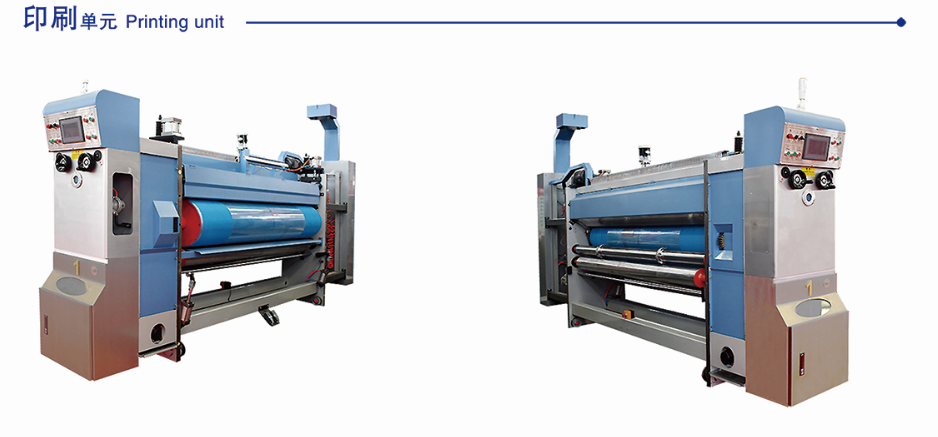

★印刷混橫向電腦調整,調幅±10mm。
★精密網紋棍,其網紋棍配合送紙系統,氣壓式自動升降裝置(送紙
時網棍下降與印版接觸,停止送紙時網混上升與印版分離)。
★棘輪式快速掛版裝置,全版掛版溝,適用9mm掛版條,附腳踏開
關電動控制正反轉。
★快速更換膠棍、網棍裝置,配快換支架。
★擦版記憶、自動復位系統。
★選配刮刀及陶瓷網紋棍勻墨方式。
★選配傾斜校正裝置,貼版時的傾斜誤差可在版棍上快速糾正。
★Printng oller is adopt Horizontal computer adjustment ,adustment range ±10mm.
★Precision anilox oller,the anilox rller is matched with paper feeding system, pneumatic
automatic liting device (the anilox roller is lowered to contact with the printing plate when
teeding paper,andthe anilox roller is raised and separated with the printing plate when the
paper feeding is stopped).
★Ratchet type quick-hanging device, full plate of the hanging groove,sutable for 9mm hanging
strips.with fool switch electric control positive and negalive.
★Quickly change rubber oller and anilox roller device with quick change bracket.
★Clean plate memory,automatic reset system.
★Optional: scraper and ceramic aniox oller distrbuting ink type..
★Optional :tit correction device, the tit error when glue plate on printng oller can be quickly
corrected on the plate oller.

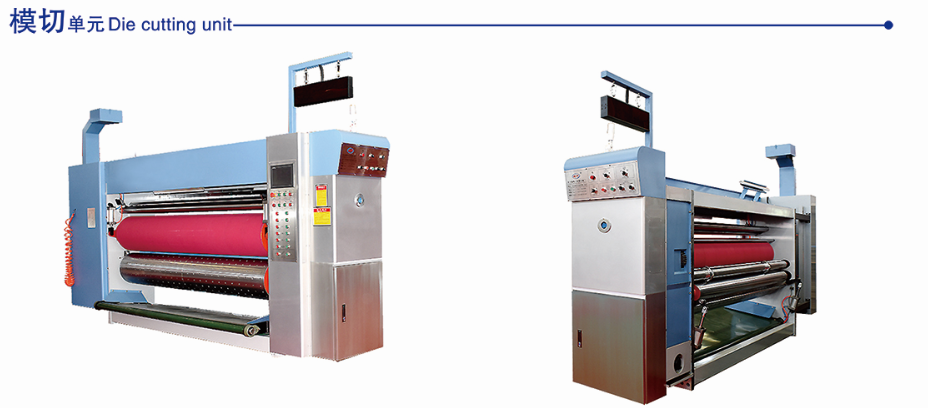

★配備進口快換式聚氨酯膠墊,更換方便,具有單向離合器作線速
度補償功能,可確保膠墊磨損后與磨損前模切出的紙板完全一致。
★工作中模切膠墊滾筒機械螺旋式左右自動橫移(±20mm),使切口
刀痕不重復,延長膠墊使用壽命。
★膠墊棍與模切棍間隙采用氣動控制,正常送紙時膠墊混下降到工
作位置,停止送紙時膠墊混自動升起。
★模切棍橫向電腦操控,電動調整,調幅±10mm。
★膠墊修正機構,增加膠墊使用次數,降低消耗。
★模切底部裝有廢紙輸送裝置,將模切后的紙屑輸送到設備以外,
方便清理。
★Equipped with imported quick change type polyurethane rubber ,easy to change, with
one-wayclutch as linear velocity compensation function ,Ensures the rubber wear before and
wear afterdle cut out the cardboard is same.
★In the work, the die-cut rubber roller mat is mechanically spirally left and right
automaticallytraversed ( ±20mm), so that the notch marks are not repeated, and the life of the
rubber is extended.
★The gap between the rubber roller and the die-cut roller is pneumatically controlled.When feeder
paper is normally, the rubber roller is lowered to the working position, and the rubber roller is
automatically raised when feeder paper is stopped.
★Die-cutting roller horizontal computer control, electric adjustment, amplitude modulation±10mm.
★Rubber roller mat correction mechanism to increase the number of times the pad is used and
reduce consumption.
★The bottom of the die- cutting is equipped with a waste paper conveying device to transport
the die-cut paper scraps outside the equipment for easy cleaning.

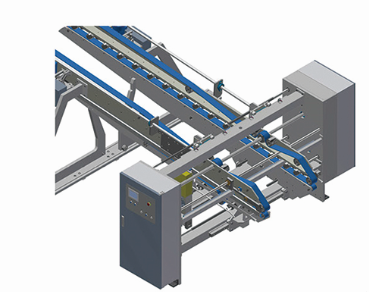

★電腦控制自動設定機身與噴腋位置。
★入紙?zhí)幉捎秒妱?dòng)毛輪以及高壓吹風將切角廢邊強力清掃,徹底清除廢邊。
★氣動調節傳送帶的漲緊程度,塞紙檢測時自動松開傳送帶。
★彈簧加壓式輸送輪,無需調整傳送帶與紙板壓力。
★二次壓線:側壓輪對經過的紙板進行再次壓線,使折疊更加準確。
★選配意大利ERO、美國VALCO等國際知名品牌噴膠系統,無需任何設置,自動調整膠線長度。
Computer control automatically sets the machine and glue position.
★Use electric hair wheel and high-pressure air blower at the paper feeding
place to clean the cormers and remove the waste edge thoroughly.
★Pneumatically adjust the tension of the conveyor belt,automatically rlease the
conveyor belt when the paper is detected.
★Spring-loaded conveyor whee.no need to adjust conveyor and cardboard pressure.
★Secondary pressing line:The side pressing wheel presses the passing cardboard
again to make the folding more accurate.
★Optional ltalian ERO,American VALCO and other internationally renowned brand
spray system, automatically adjust the lengh ofl the glue line without any settings.

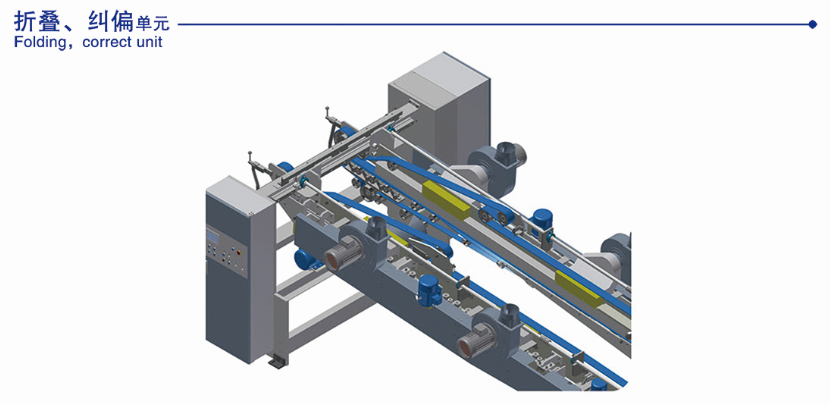

★強力吸附風機,確保紙板在傳送過程中的精確傳遞。
★可單獨調整左右兩側糾偏帶速度,減少剪刀差現象發生。
★主動力采用變頻調速電機,確保與印刷機的同步性。
★塞紙檢查裝置,紙板輸送不暢時自動緊急停止。
★所有動力均采用同步帶傳動,結構簡單,噪音低運行平穩,
振動小。
★Strong adsorption of the fan to ensure accurate delivery of the cardboard during transport.
★The speed of the correction belt on the left and right sides can be adjusted separately to
reduce the occurrence of scissors.
★The main power adopts frequency conversion motor to ensure synchronization with the
printing machine.
★Paper jam inspection device,automatic emergency stop when the cardboard conveyor is
not smooth.
★All powers are driven by synchronous belt, with simple struclure, low noise,stable
operation and low vibration.

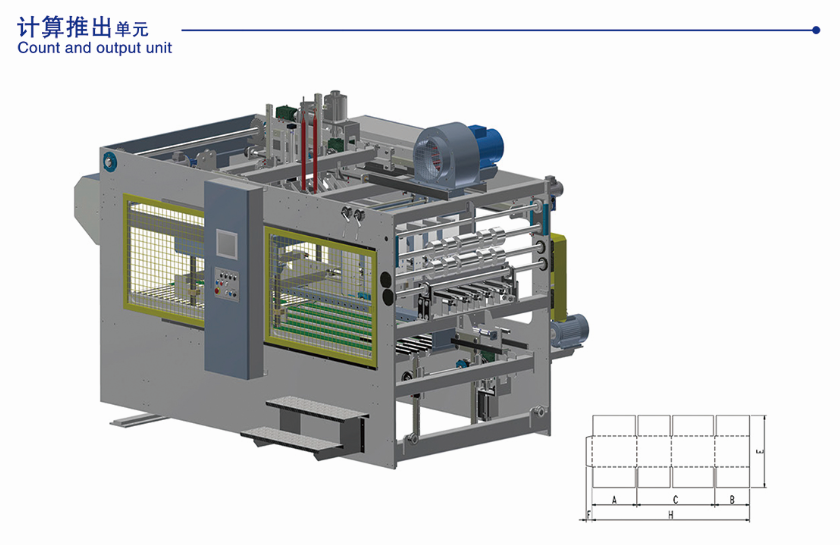

★下落方式的計數推出部。
★由三組伺服電機共同構成高速運行下精確計數、堆積、
輸出功能。
★電腦控制自動設定碼垛紙箱數量。
★強力風壓裝置,使上膠后的紙板順利下落。
★全面拍齊校正裝置,有效改善剪刀差現象。
★后擋板根據紙板規格可前后自動或手動調整。
★紙板排出不暢時自動緊急停止。
★氣動推紙機構,將堆疊好的紙箱高速推出。
★電動式左右移動裝置(對準中心)。
★Counting and out put unit is adopt up stack..
lt is composed of three sets of servo motors to form accurate counting,
stacking and output functions under high- speed operation.
Computer control automatic setting code carton number.
★Strong air pressure device to make the cardboard down smoothly after glue.
★Fully Pat、correction device to effectively improve the scissors.
★The behind baffle can be adjusted automatically or manually according to the
cardboard specifications.
★Automatic emergency stop when cardboard discharge is not smooth.
★Pneumatic paper pushing mechanism, high-speed stacking of stacked cartons.
★Electric left and right move device (aligned to the center).
項目 | Project | HFG--2000 | HFG--2400 | HFG--2800 | ||||
920 | 924 | 1224 | 1228 | 1628 | ||||
粘箱最高速度(張/分鐘) | GluingMaxspeed(pcs/min) | 250 | 220 | 200 | ||||
最小折疊尺寸A(mm) | MinfoldersizeA(mm) | 180 | 200 | 240 | ||||
最小折疊尺寸B(mm) | MinfoldersizeB(mm) | 150 | 180 | 200 | ||||
機身最小間距C(mm) | MainrollertheMindistanceC(mm) | 320 | 380 | 440 | ||||
最小接紙寬度E(mm) | MinstackingwidthE(mm) | 300 | 320 | 400 | ||||
最大接紙寬度E(mm) | MaxStackingwidthE(mm) | 900 | 1200 | 1600 | ||||
最小過紙尺寸H(mm) | MinSheetsizeH(mm) | 640 | 760 | 880 | ||||
最大過紙尺寸H(mm) | MaxsheetsizeH(mm) | 2000 | 2400 | 2800 | ||||
貼耳寬度F(mm) | FlapwidthF(mm) | 40 | ||||||
適應紙板厚度 | Cardboardthickness(mm) | 1.6-8 |
