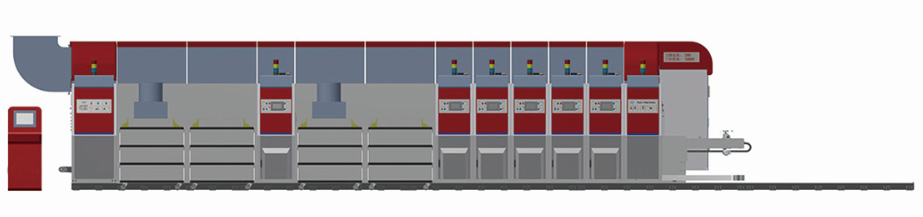

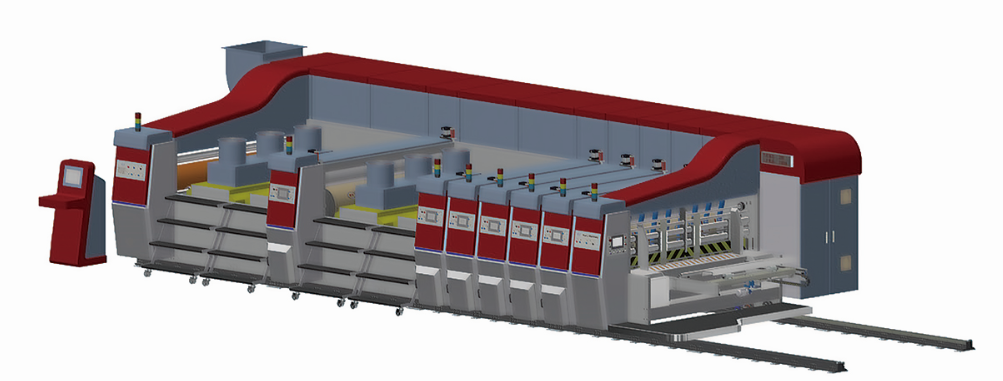

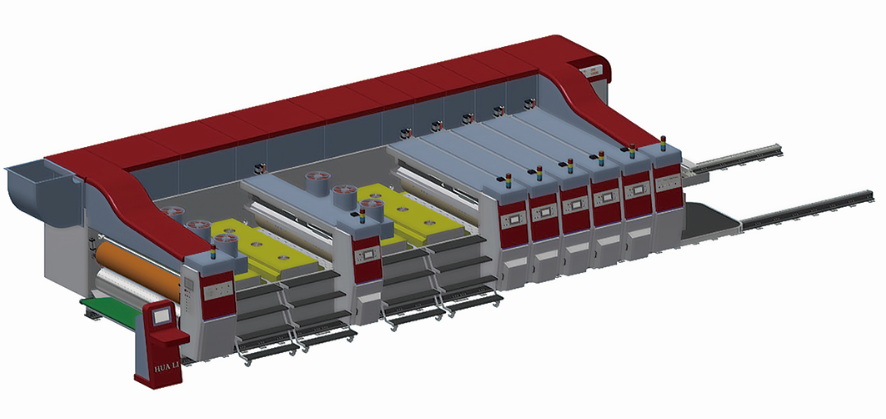

新型一全程吸附高清印刷-上光-烘干-模切機(上印式)

整機特點:

★高精度:±0.3mm的套準精度，源于伺服傳動、免壓送紙系統和全程真空吸附傳送。

★高網線: 130Lpi的印刷網線，源于封閉式刮刀配陶瓷網紋棍和精密調壓系統。

★高效率:“送紙-除塵-印刷-紅外烘干-上光-紅外(紫外)烘干-模切-清廢-堆碼”一次完成的生產流程，介于100到

150張/分鐘的生產速度。

★高品質:采用CNC智能化操控系統與德國博世力士樂合作，通過網絡，實現遠程維護，確保設備長期穩定運行。

★低消耗:優良的細節設計和聯線生產方式，可節省更多生產材料和人工成。

Machine characteristics:

★High precision:±0.3mm registration accuracy, derived from servo drive, pressure-free paper feeding system and ful

vacuum suction transmission

★High network cable:130Lpi printing network cable, derived from closed scraper with ceramic anilox roller and precision

pressure regulating system

★High efficiency:The production process of "paper feeding-dust removal-printing-infrared drying-glazing-infrared

(ultraviolet) drying-die cutting-cleaning-stacking" is completed at one time, between 100 and 150 sheets Production speed

★High quality: The CNC itelligent control system is used in cooperation with Bosch Rexroth to achieve remote maintenance

through the network to ensurelong-term stable operation of the equipment.

★L(fēng)ow Consumption:Excellent detailed design and in-Mline production method,which can save more production materials and

labor costs.

技術參數 The Machine technique parameter:

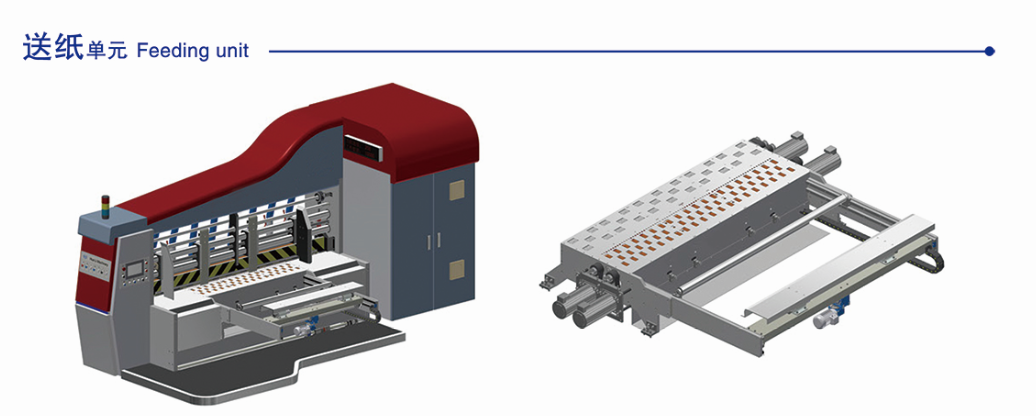

★伺服電機獨立驅動，無齒輪側隙磨損，壽命長、精度高。

★真空吸附前緣送紙，變頻調控風量，送紙穩定、精準。

★延伸式送紙系統，根據紙板長度，確定送紙行程大小，

提高送紙精度。

★免壓送紙系統，避免紙板傳送過程被破壞，確保原紙板

抗壓強度。

★整機自動歸零系統，儲存常用訂單，快速換單，操作便捷。

★加寬型除塵裝置，除靜電毛刷，可清除紙板表面紙屑粉塵，

提高印刷品質。

★左、右側擋板、后托板均為電腦操控，精密導向機構，

位移平穩，附帶側拍功能。

★Servo motor is driven independently, no gear backlash wear, long life and high precision.

★Vacuum suction leading edge paper feeding, frequency control air volume, paper feeding is

stable andaccurate.

★Extended paper feeding system, according to the length of the cardboard,determine the size

of the paper feeding stroke and improve the paper feeding accuracy.

★Pressure-free paper feeding system, avoiding the cardboard conveying process being

damaged,andensuring the compressive strength of the original cardboard.

★The machine's automatic zeroing system stores frequently used orders, quickly changes

orders,and iseasy to operate.

★Wide dust-removing device and electrostatic brush can remove paper dust on cardboard

surface andimprove printing quality.

★The left and right side bezels and the back support are controlled by computer,with precise

guidemechanism,stable displacement and side shooting function.

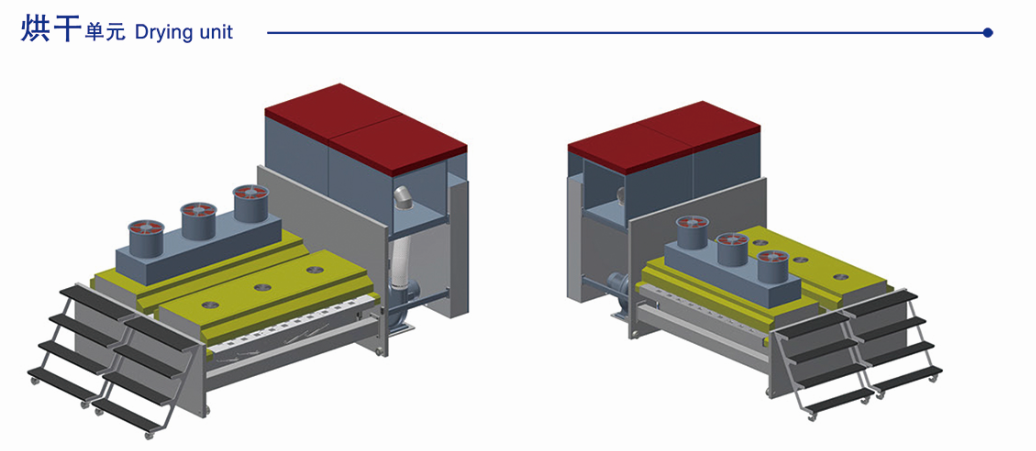

★紅外線干燥方式，避免出現水墨不干影響印刷或上光效果。

★紅外烘干箱體升降氣動控制系統，烘干箱體可快速抬起。

★可根據紙板寬度需要，選擇烘干范圍，節約能源。

★同樣采用全程真空吸附配合陶瓷送紙輪傳遞系統，確保紙

板的傳遞穩定性。

★變頻調整吸附風力，還可根據紙板長度手動調整風箱的風

門可選配紫外線烘干系統，對印刷品表面UV光油的烘干。

★Infrared drying method to avoid the effect of ink and ink drying on printing or varnishing effect.

★Infrared drying box lifting pneumatic control system, the drying box can be quickly raised.

★Can choose the drying range according to the width of the cardboard, saving energy.

★Also adopts full-vacuum adsorption with ceramic paper wheel transfer system to ensure the

stabilityof cardboard transfer.

★Frequency adjustment adjusts the adsorption of wind, and the damper of the bellows can also

be adjusted manually according to the length of the cardboard.

★Optional UV drying system for drying UV varnish on printed surface.

★全程真空吸附，配合陶瓷送紙輪傳遞系統。

★變頻調整吸附風力，還可根據紙板長度自動調整風門的開關。

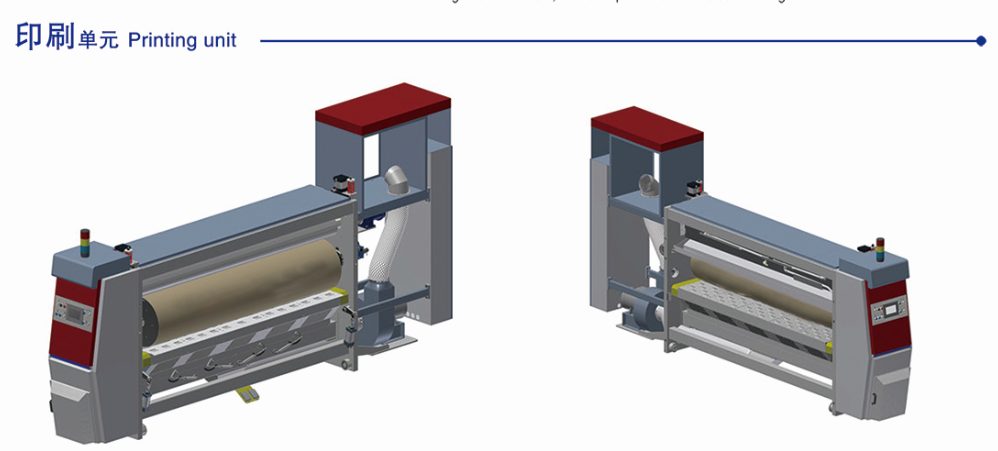

★封閉式刮刀配陶瓷網紋棍，實現高網點精密印刷，刮刀受力

均勻，調整維護簡單。

★氣動式雙隔膜泵，快速清洗功能，供墨、循環穩定，操作保

養簡單。

★快速更換膠棍、網棍裝置,配快換支架。

★傾斜校正棍筒，貼版時的傾斜誤差可在版棍上快速糾正，掛

版方便快捷。

★擦版記憶、自動復位系統。

★Vacum suction during the whole process,with ceramic paper wheel transmission systerm.

★Frequoncy adjustment adjusts the adsorption ol wind, and can also auomatically adust the

opening and closing of the damper according to the length of the cardboard.

★The closed scraper is oquipped with coeramic anilox oller to achiewe high-dot precision printing.

★Pneumatic double dlaphragm pump, fast cleaning function, stable Ink supply, stable clrculation,

si mple operation and maintenance.

★Quickly change the rubber oller and screen oller device,with quick- change bracket.

★Tilt correction rllr.The tilt error during plate mounting can be quickly corrected on the plate roller.

★Erasing memory and automatic reset system.

★獨立伺服驅動，避免因模切沖擊影響印刷效果

★配備進口快換式聚氨酯氈套,更換方便，具有單向離合器

作線速度補償功能，可確保氈套磨損后模切出的紙板完全

一致

★工作中模切氈套滾筒機械螺旋式左右自動橫移(±20mm)，

使切口刀痕不重復，延長氈套使用壽命

★氈套棍與模切棍間隙采用氣動控制，正常送紙時氈套棍下

降到工作位置，停止送紙時氈套棍自動升起

★氈套修正機構，增加膠墊使用次數，降低消耗

★模切底部裝有廢紙輸送裝置，將模切后的紙屑輸送到設備

以外，方便清理

★Independent servo drive to avoid printing effects due to die cutting impact.

★Equipped with imported quick-change polyurethane felt cover, which is easy to replace, and has

aone-way clutch for linear speed compensation, which can ensure that the cardboard cut out by

the felt cover is completely consistent.

★During the work, the mechanical spiral of the die- cutting felt sleeve roller is automatically moved

horizontally ( ±20mm), so that the cutting knife marks are not repeated and the service life of the

felt sleeve is prolonged.

★The gap between the felt cover roller and the die-cutting roller is pneumatically controlled.The felt

cover roller is lowered to the working position during normal paper feeding, and the felt cover

roller is automatically raised when the paper feeding is stopped.

★Felt cover correction mechanism can increase the use of rubber pads and reduce consumption.

★The bottom of the die cutting is equipped with a waste paper conveying device to convey the

paper scraps after the die cutting to the outside of the equipment for easy cleaning.
