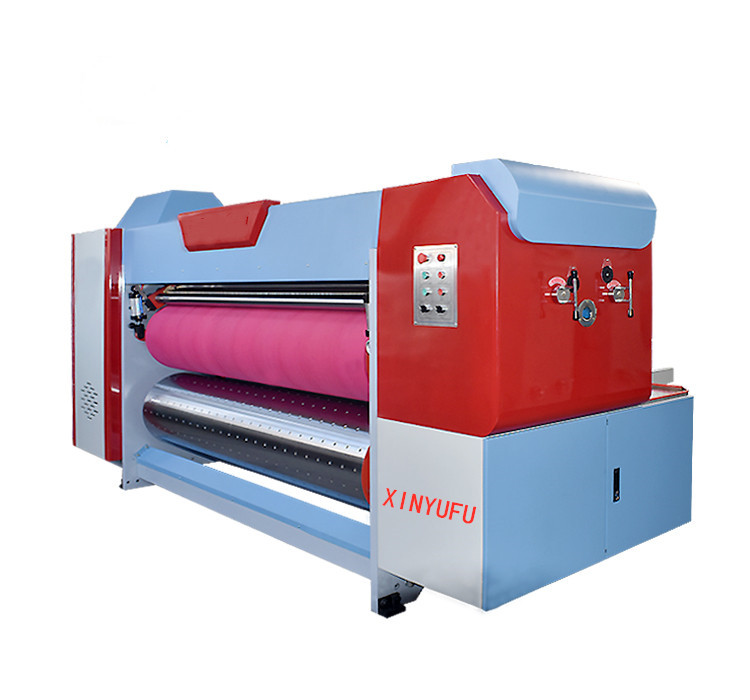

產品展示
功能與特點:
★滾輪式前緣送紙結構、多輪、多點式吸風送紙，摩擦力大，速度高，送紙平穩，準確。
★吸風變頻調整風量，風壓可根據紙板大小進行調整，增加薄紙板及曲翹紙板傳動穩定性，
準確性。
★送紙膠軸，采用氣壓式彈性送紙，不破壞瓦楞紙板強度。
★整機齒輪采用40Cr鍛造，高頻淬火處理，磨齒;采用噴淋式自動潤滑，極大提高了運轉
精度及使用壽命。
★模切膠墊采用美國CUE公司進口，安裝調換方便，模切刀口平整光滑，使用壽命長，可
達1200萬次左右，極大降低了生產成本。
★模切膠墊輯采用機械式橫移裝置左右移動40mm，并有氣動裝置控制刀模上下移動，延
長膠墊使用壽命。
★自動線速度補償，使優力膠墊均勻磨損，并配有膠墊修復系統，膠墊可多次使用。
★送紙側擋板及后擋箱位置均為電腦及電動控制。
★輯筒采用優質鋼，內部調質，表面研磨，鍍硬鉻，并作動平衡校正，運轉平穩。
★模切輪相位，相位調整采用行星齒輪式結構，PLC觸摸屏控制及電動數字式360度調整。
★進口控制系統，西門子、施耐德低壓電器。
Function and characteristic:
★Roller type front feeding structure,rounds,multpaint suction feeding.high friction,high speed,paper feeding smoothly and accurate.
convey stability and accurately.
★The feeding paper roller adopt pneurmatic type elastic feeding paper, don't destroy the strength of corugated board.
reach about 12 million times,greatly reduce the cost of the production.
prolong the service life of the rubber mat.
★Paper feeding side baffle and the back block box are all controlled by computer and electric.
lmport control system,Siemens . Schneider low-voltage electrical appliances.
* Frequency conversion of suticn can adut the wid volume,and the wind pressure can be adusted by the size of the papertoardincrease the thi board and the bend bard
The machine gear are 40Cr forging,.high fequency quenching treatment,gidingusing soray type utomatic ltricaton greaty inprove the cpeaionprcson and seavic lfa
The die cuting nuber matimpors fom CuEorpary in Uhied Stlesli’'sessy to insalaion and transder,the edge of the die cuting si s smoothe sevic lfeis kong.tcan
The die cuting rubber matroller adopt mechanical rorizonialsiter moving around 4o mm,the movirg up and downofthecutngmold s contoted of the pnouraticdraic,
Automatclne speed conpernsaton,make the Youi ubber mat even wear and equipped with ubber mat repar ystem,the rubber mat can be used muliple timeas.
★Rolleris madie of high qualiy seel internal condtioning, surtace grinding, hard chromniurm plating, and dynamic balancing correcton, smooth operaion
*Die-cuting rollrphase, phase adjustment adopts planetary geartype structure,PLC touch screen control and electic digital 30 degrees of adjustment
技術參數 The Machine technique parameter:
型號 Model | 單位 unit | 1200× 2200/2400/2600 | 1400×2200/2400/2600 | 1600×2400/2600/2800 |
最大過紙尺寸 Max cardboard size | mm | 1200×2000/2200/2400 | 1400×2000/2200/2400 | 1600x2200/2400/2600 |
最小過紙尺寸 Min cardboard size | mm | 350×600 | 400×600 | 450×600 |
適應紙板厚度 Cardboard thickness | mm | 2-8 | 2-8 | 2-8 |
設計時速 Design speed | pcs/min | 160 | 160 | 160 |
經濟時速 Economic speed | pcs/min | 80-140 | 80-140 | 80-120 |
最大模切尺寸 Max die cutting size | mm | 1200×1950/2150/2350 | 1400×1950/2150/2350 | 1600×2150/2350/2550 |
Attachment mould 模版輯直徑 roller diameter | mm | 360 | 432 | 487 |
