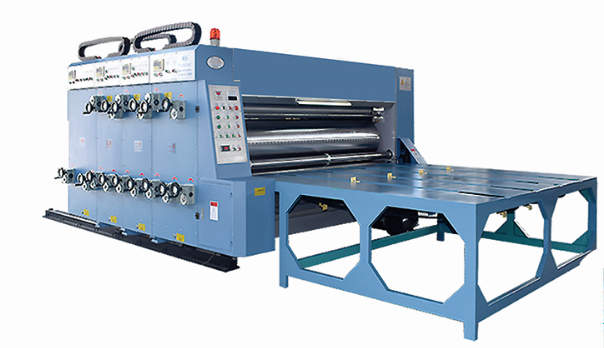

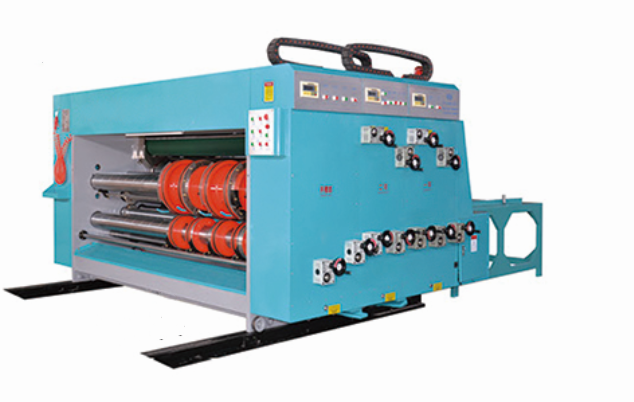

鏈條式水墨印刷開槽機

功能與特點:

★該機采用鏈條送紙方式，雙側擋規定位，確保送紙準確無誤。

★機組采用電動分合體，氣動鎖緊，氣動抬版，自動勻墨，氣動剎車分體定位。

★印刷、模切采用行星齒輪式結構，電動360度調整，數字顯示。

★潤滑方式采用雙油泵，自動噴淋，循環供油，保持油位平衡，極大提高了運轉精度及使用壽命。

★整機齒輪采用45#鋼，斜齒設計，剃齒高頻淬火而成。

★整機傳動采用十字滑塊結構，采用免鍵連接套，消除鏈接間隙，運轉平穩。

★整機軸類，能類，研磨加工，鍍硬鉻。

★整機電器，采用國際品牌，西門子，施耐德。

★整機軸承，采用國內三大名牌:“哈瓦洛”。

★可選裝掛版，網紋目數可選180-260目。

Function and characteristic:

★This machine adopts chain feeding type,bilateral blocking(side lay) positioning,to ensure that feed paper accurately.

★Each unit uses electic to separate and combine,pneurmatic locking.pneumati lit plate, autormatic ink distributing.pneumatic brake

fission positioning.

★Print and die cut adopts structure of planetary gear type,electric 360°adjustment,digital display.

★The lubrication way adopt double oil pump,automatic spray,circulating olil supply.keep the balance of the oil level.greatly improve the

operation precision and the service life.

★The machine gear uses 451# steel,helical gear design,shaving uses high frequency quenching.

★The machine transmission uses cross silide block structure,adopts free key connection,remove the link clearance,pperate smoothy.

★The shaft and roller of the machine are all grinding processing,hard chromium plating.

★The machine electrical adopts the international famous brand,such as Siemens,Schneider.

★The machine bearing,adopts one of three domestic famous brands:"Hawa los".

★The hanging plate is optional,anilox roller mesh can option 180-260 mesh.

技術參數 The Machine technique parameter:
