功能與特點:
★移動機組、上吸附、紙板下面印刷方式。
★可直接與瓦楞紙板生產線連線作業,省去紙板面
紙朝下需要翻個才能印刷的工序。
★直接與平壓平模切機、自動捆扎打包機連線生產,
實現印刷、上光、平壓平模切、捆扎一體化聯動生產。
★直接與上折式全自動糊箱機、全自動釘箱機連線生產。
★可搭配開槽組、圓壓圓模切組、清廢機、自動堆碼機連線,使堆碼后的紙跺直接送至半自動釘箱機、半自動粘箱機生產,省
去傳統上印式印刷機需要把印刷面翻個的工序。
Function and characteristic:
★Removable unit,up adsorption, cardboard down printing type.
★Can be directly connected to the corrugated board production line, save the process of paperboard face down to need to
turn over to printing.
★Can be directly connected to automatic die cutting machine and automatic binding machine to realize integrated linkage
production of printing, glazing,auto die cutting and binding
★Can be directly connected to up folding type automatic gluing machine, automatic stitching machine
★Can be directly connected to slotting unit, rotary die cutting unit,waste paperboard cleaning machine and automatic
stacking machine, so that the stacking of paper can directly to the semi- automatic stitching machine, semi--automatic
gluing machine,saving the process of traditional printing machine need to turn over the printing surface.
項目 | Project | 1224 | 1418 | 1426 | 1628 |
最高機械速度(張/分鐘) | Max speed (pcs/min) | 200 | 200 | 180 | 160 |
送紙精度 | Feeding precision (mm) | ±1 | |||
最小送紙尺寸( mm) | Min Sheet size (mm) | 420×600 | 450×600 | 450×60o | 450×600 |
正常送紙最大尺寸( mm) | Max sheetl size (mm) | 1150×2500 | 1350×1900 | 1350×2700 | 1500 ×2900 |
隔張送紙尺寸( mm ) | skip Sheet size (mm) | 1500×2500 | 1800×1900 | 1800x2700 | 2000×2900 |
最大印刷面積 | Max printing aroa (mm) | 1200×2400 | 1400×1800 | 1400x260o | 1600×2800 |
印刷精度 | Printing precision (mm) | ±0.5 | |||
印版厚度 | Plate thickness (mm) | 7.2 | |||
最小開槽間隔( mm ) Minimum sior distance (mm) | H刀positive knife 度為hegative knile (mm) | 140×140 x140×140 230×70x230×7o | 150x150x15O×15o | ||
240×75×240×75 | |||||
最大開槽深度( mm ) | Max slot depth (mm) | 3oo | 36o | 40o | |
(可增加刀片加大開槽深度) increase the blade, increase the slot depth | |||||
開槽精度 | Slotting precision (mm) | ±1 | |||
最大模切尺寸 | Max die cutting size (mm) | 120o×2400 | 1400×180o 1400×260o | 160o x280o | |
模切精度 | Die cutting precision (mm) | ±1 |

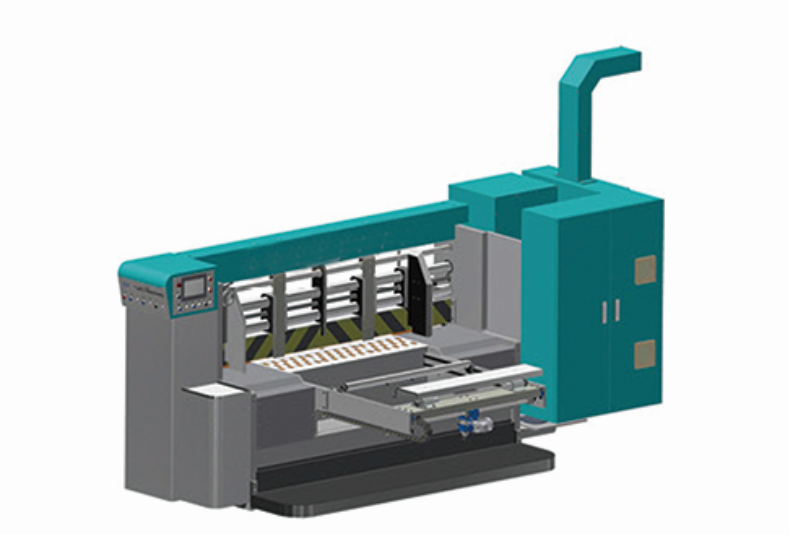

送紙單元Feeding unit
★送紙前緣定位,真空吸附,變頻調整風量,增加紙板輸送穩定性、準確性。
★前擋板、側擋板、后托板均為電腦控制,精密導向機構,位移平穩。
★送紙膠棍包震進口軟橡膠,經久耐用,膠軸快換機構,設備維護方便。
★隔張送紙功能(可根據需要選擇連續或隔張送紙)。
★拍薺裝置,使紙板堆疊更整齊。
選配機械式前緣送紙或伺服式前緣送紙系統。
★選配免壓前緣送紙系統。
★Paper feeding leading edge positioning,vacuum adsorption, frequency conversion to adjust the air
volume,increase the stability and accuracy of cardboard transport.
★The front baffle, side baffle, rear pallets are computer controlled,precision guide mechanism, smooth
displacement.
★The paper feeding roller wrapped in imported soft rubber,durable, rubber roller quick change
mechanism,machine maintenance is convenient.
*Skip paper feeding function (can choose continuous or skip paper sheet feeding according to the need).
★The pneumatic line device makes the paper sheet stack more orderly.
★Mechanical leading edge feeding or servo leading edge feeding system is optional.
Free leading edge feeding system is optional.

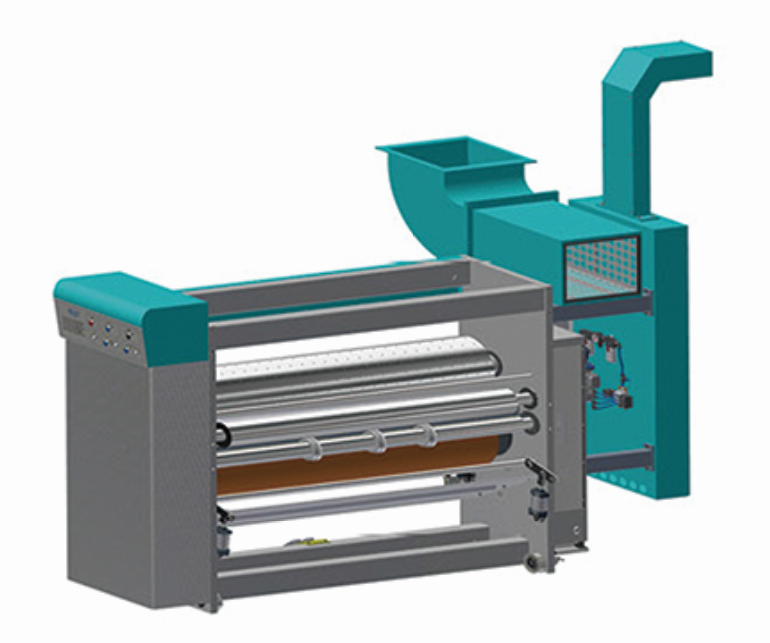

印刷單元Printing unit
★真空吸附,陶瓷輪傳送,紙板下面印刷。
印刷相位、版混橫向電腦操控。
★電磁剎車機構,當機臺分離或調整相位時剎車機構限制齒輪轉動,保持原有齒輪位置固定點。
★氣動式雙隔膜泵,供墨、循環穩定,操作保養簡單,油墨濾網,過濾雜質,不銹鋼制墨槽。
★快速更換膠銀、網棍裝置,配快換支架。
★清洗印版后自動復位系統。
選配刮刀、陶瓷網紋棍勻墨方式。
Vacuum adsorption, ceramic wheel transfer,Printing under of cardboard
The printing phase, plate roller horizontal computer control.
The electromagnetic brake mechanism,when the machine is separated or adjusted phase brake ,
mechanism limitgear rotation, maintain the original gear position fixed point.
★Pneumatic double diaphragm pump, ink supply, stable circulation, simple operation and maintenance, ink
flter,filter impurities,stainless steel ink tank.
Quickly replace the rubber roller,anilox roller device, with a quick replacement of the support.
Automatic reset system after cleaned the print plate.
Doctore blade,ceramic anilox roller uniform ink is optional.

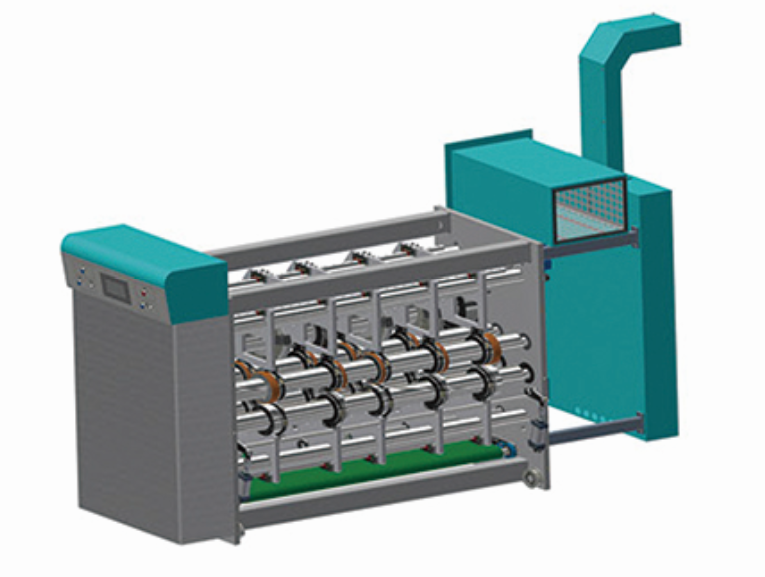

開槽單元Slotting unit
開槽刀輪形式:雙刀單軸式。
★合金鋼材料經熱處理研磨鋸齒形開槽刀片,硬度和韌性具佳。
★壓線輪、刀座橫移、相位調整、復位等均可電腦控制(自動或手動)電動控制,換單迅速。
★壓線輪內嵌優力膠,壓線輪橫移位置可隨開槽刀座同時調整。
★中刀橫向位移結構,生產適應性產。
★彈性切角刀結構,三層、五層紙板切角無需調整。
★精密直線導軌,配合滾珠絲杠,使并槽刀座移動更靈活、準確。
Slotting holder type: double knife single shaft type.
★Alloy steel material after heat treatment grinding serrated slotted blade, good hardness and toughness.
★Pressure wheel, blade holder traverse move,phase adjustment, reset and other computer control
(automatic or manual)electric control, change the order quickly.
★Pressure wheel is embedded with rubber, the horizontal position of the line roller can be adjusted with the
slotting tool base at the same time.
★Medium blade transverse displacement of the blade structure,wide adaptability to production.
★Flexible corner cutter structure, three, five layers of cardboard corner without adjustment.
★Precision linear guide, with ball screw, so that slotting holder movement more flexible and accurate.

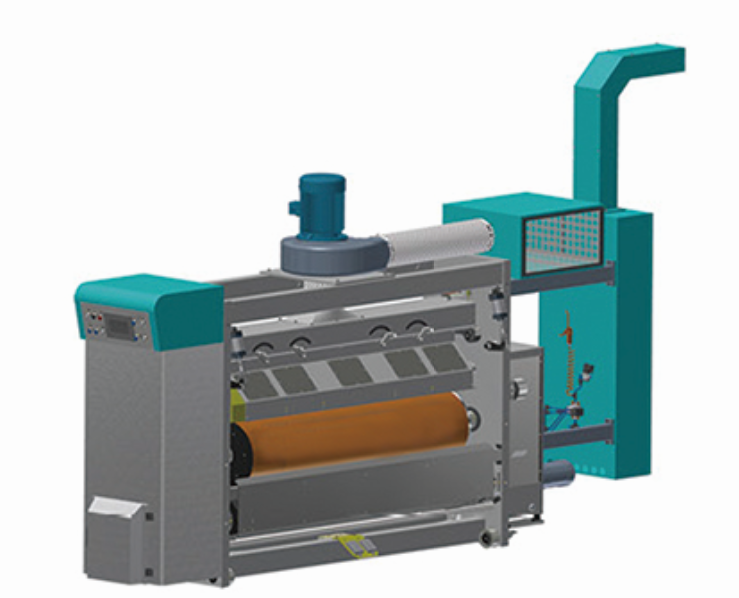

模切單元 Die cutting unit
◆配備進口快換式聚氨酯膠墊,更換方便,具有單向離合器作線速度補償功能,可確保膠墊磨損后模切出
的紙板完全一致。
◆工作中模切膠墊滾筒機械螺旋式左右自動橫移(土20mm),使切口刀痕不重復,延長膠墊使用壽命。
◆膠輪與模切貔間隙采用氣動控制,正常送紙時膠輪下降到工作位置,停止送紙時膠輪自動升起。
模切輻橫向電腦操控,電動調整,調幅土10mmo
◆膠墊修正機構,增加膠墊使用次教,降低消耗。
快移式送紙環,快速、方便。
★lt is equipped with imported quick-change polyurethane rubber,easy to be replaced,and has the function
of one-way clutch for linear speed compensation, which can ensure that the die-cut cardboard of rubber is
completely consistent after wear.
★When working, the die cutting rubber drum mechanical screw automatic transverse movement
(plus or minus 20mm), so that the cutting mark does not repeat,prolong the service life of rubber.
★The gap between the rubber roller and the die cutting roller is controlled by pneumatic control.The rubber
roller will drop to the working position when the paper feeding is normal, and the rubber roller will
automatically rise when the paper feeding is stopped.
★Die cutting roll horizontal moving computer control, electric adjustment, amplitude modulation plus or minus
10mm.
★The rubber roller correction mechanism, increase the use number of rubber , reduce consumption.
Fast moving paper feeding ring,fast and convenient.
