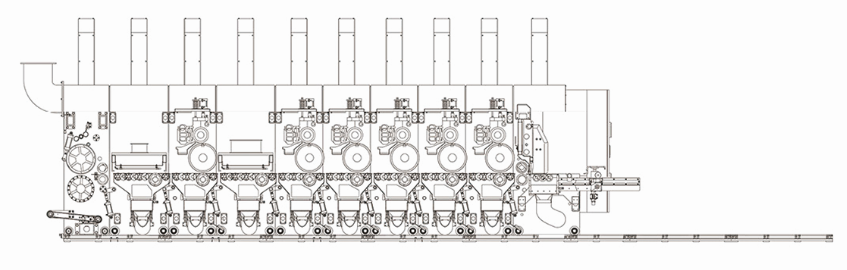

功能與特點:
★高精度:±0.3mm的套準精度,源于伺服傳動、免壓送紙系統和全程真空吸附傳送。
★高網線:130Lpi的印刷網線,源于封閉式刮刀配陶瓷網紋棍和精密調壓系統。
★高效率:“送紙-除塵-印刷-紅外烘干-上光-紅外(紫外)烘干-模切-清廢-堆碼”一次完成的生產流程,介于100到150張/分鐘
的生產速度。
★高品質:采用CNC智能化操控系統與德國博世力士樂合作,通過網絡,實現遠程維護,確保設備長期穩定運行。
★低消耗:優良的細節設計和聯線生產方式,可節省更多生產材料和人工成本。
Function and characteristic:
★High Precision:+0.3mm accuracy is derived from servo drive,No pressure feeding system and vacuum absorption transmission.
★High definiton:13OLpiPrinting Line,Originated from Closed doctor blade with Ceramic anilox Roller and Precision Pressure
Regulating System
★High efficiency: Paper feeding,dust removal, printing,infrared drying, polishing, infrared(ultraviolet )drying.die c.utting and stacking
complete the production process at one time.The production speed is between 100 and 150 pcs per minute.
★High Quality:CNC ltelligent Control System is used to cooperate with Germany Bosch Rexroth to achieve long- distance
maintenance through network and ensure long-term stable operation of equipment.
★Low Consumption: Excellent detail design and on-line production can save more production materials and labor costs.
技術參數The Machine technique parameter:
項目 | Project | 920 | 924 | 1224 | 1228 |
最高機械速度(張/分鐘) | Max speed (pcs/min) | 200 | 180 | ||
送紙精度 | Feeding precision (mm) | ±0.75 | |||
最小送紙尺寸( mm ) | Min Sheet size (mm) | 300×600 | 380×600 | ||
正常送紙最大尺寸(mm ) | Max sheet size(mm) | 86O×2100 | 860x2500 | 1150×2500 | 1150×2900 |
隔張送紙尺寸( mm ) | Skip Sheet size (mm) | 1200×2100 | 1200×2500 | 1500×2500 | 1500×2900 |
最大印刷面積( mm ) | Max printing area(mm) | 900x2000 | 900×2400 | 1200×2400 | 1200×2800 |
印刷精度 | Printing precision(mm) | ±0.3 | |||
印版厚度 | Plate thickness (mm) | 7.2 | |||
最大模切尺寸( mm ) | Max die cutting size(mm) | 900x1950 | 900×2400 | 1200×2400 | 1200x2800 |
模切精度 | Die cutting precision (mm) | ±0.75 |

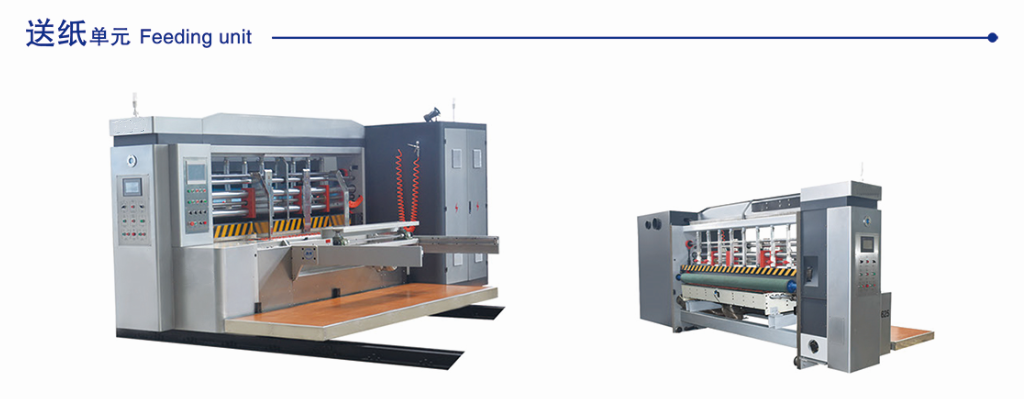

★伺服電機獨立驅動,無齒輪側隙磨損,壽命長、精度高。
★真空吸附前緣送紙,變頻調控風量,送紙穩定、精準。
★延伸式送紙系統,根據紙板長度,確定送紙行程大小,
提高送紙精度。
★免壓送紙系統,避免紙板傳送過程被破壞,確保原紙板
抗壓強度。
★整機自動歸零系統,儲存常用訂單,快速換單,操作便捷。
★加寬型除塵裝置,除靜電毛刷,可清除紙板表面紙屑粉塵,
提高印刷品質。
★左、右側擋板、后托板均為電腦操控,精密導向機構,
位移平★Servo motor independent drive, no gear clearance wear, long life,high precision.
★Vacuum adsorption leading edge feeding. frequency control of air volume, feeding stability,
precision.
★Extended type feeding system, according to the length of the cardboard, determine the feeding
stroke size, improve the feeding accuracy.
★Non pressure feeding system, avoid damage to the cardboard , ensure the compressive
strength of the original cardboard.
★The whole machine aulomatic zero system, storage common orders, quick order replacement,
easy tooperate.
★Wide type dust removal device, in additin to electrostatic brush, can remove paper dust on the
board surface,improve the quality of printing.
★Left, right bafle, rear pallets are computer corntolled,precision guide mechanism, smooth
displacement,with side beat function.

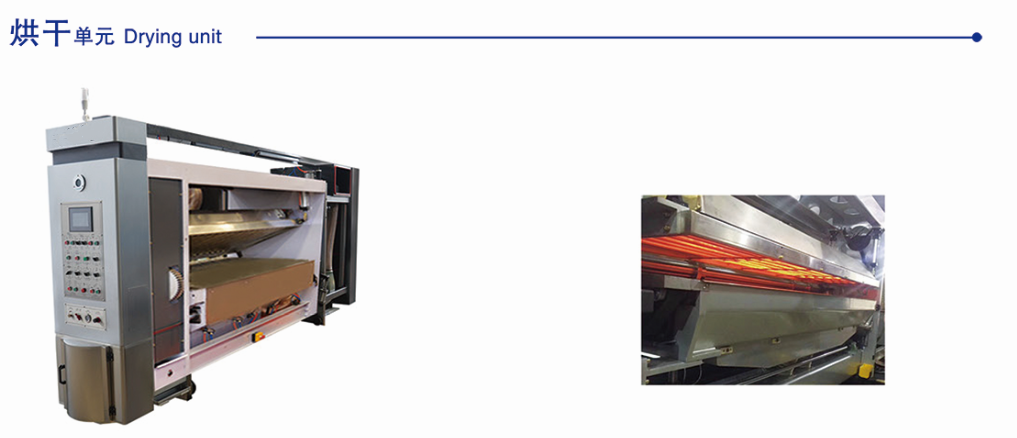

★紅外線干燥方式,避免出現水墨不干影響印刷或上光效果。
★紅外烘干箱體升降氣動控制系統,烘干箱體可快速抬起。
★可根據紙板寬度需要,選擇烘干范圍,節約能源。
★同樣采用全程真空吸附配合陶瓷送紙輪傳遞系統,確保紙
板的傳遞穩定性。
★變頻調整吸附風力,還可根據紙板長度電動調整風箱的風門。
★可選配紫外線烘干系統,對印刷品表面UV光油的烘干。
★Intrared dhryng mode.Awoid the appearance ol ink wthout dhy llel on printing o poishing.
★Intrarod dryng box iting and droping pneumatic control system,drying bou can bo quicky malsed.
★According to tho wldth of the board nods 1o choose the drying mange.save energy.
★The lul vacuum adorption wih ceranie leedng whee ransler eystem. to eneure he stabity o
cardboard transfor.
★Frequency corversion adu8tment adsorption ar wolume.al acoOdng 10 the length of the
cardboard eedric adjusiment wind belows damper.
★Opitonal uw drning system. Uv vamish dnying on the surlaoe al printed products.
★全程真空吸附,配合陶瓷送紙輪傳遞系統。
★變頻調整吸附風力,還可根據紙板長度自動調整風門的開關。

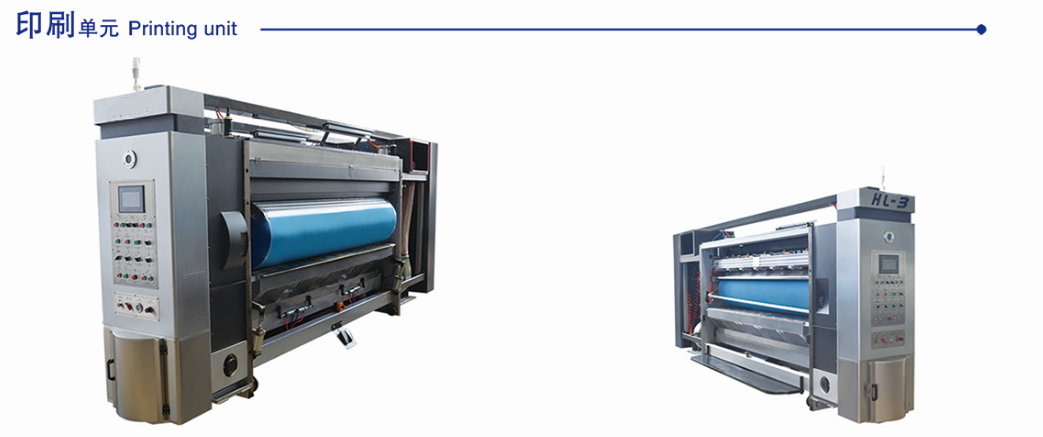

★封閉式刮刀配陶瓷網紋棍,實現高網點精密印刷,刮刀受力均勻,
調整維護簡單。
★氣動式雙隔膜泵,快速清洗功能,供墨、循環穩定,操作保養簡單。
★快速更換膠棍、網棍裝置,配快換支架。
★傾斜校正棍筒,貼版時的傾斜誤差可在版輯上快速糾正,掛版方
便快捷。
★擦版記憶、自動復位系統。
★Full vacuum adsorption, with ceramic feeding wheel transfer system.
★Frequency conversion adjustment ads orption air,also according to the length of the
cardboard automatically adjust the damper switch.
*Closed doctor blade with ceramic anilox rllr, high precision printing, doctor blade force uniform,
simple adjustment and maintenance.
★Pneumatic double diaphragm pump. quick cleaning function, ink supply.stable circulation,
simple operation and maintenance.
*Quick replacement of rubber roller,anilox roller device,with fast replacement of support.
★Tilting correction rller, the tilting error of the print plate can be quickly corrected on the plate
roller, hanging plate is convenient and fast.
★Memory Location Function,automatic reset system.
★獨立伺服驅動,避免因模切沖擊影響印刷效果。
★配備進口快換式聚氨酯膠墊,更換方便,具有單向離合器作
線速度補償功能,可確保膠墊磨損后模切出的紙板完全一致。
★工作中模切膠墊滾筒機械螺旋式左右自動橫移( ±20mm),
使切口刀痕不重復,延長膠墊使用壽命。
★膠墊棍與模切能間隙采用氣動控制,正常送紙時膠墊棍下降
到工作位置,停止送紙時膠墊棍自動升起。
★膠墊修正機構,增加膠墊使用次數,降低消耗。
★模切底部裝有廢紙輸送裝置,將模切后的紙屑輸送到設備以
外,方便清理。
★Independent servo drive,avoid impact of die cutting on the printing effect.
★Equipped with imported fast changing polyurethane rubber,easy to replace,with a one-way
clutchfor linear speed compensation function, can ensure that the fubber wear out of the die-
cut cardboard is exactly the same.
★When working,the die cutting rller mechanical screw about automatic transverse movement(plus
or minus ±20mm).so that the cutting knife does not repeat,prolong the service lite of felt sleeve.
★The gap between rubber roll and die cutting roll is contolled by pneumatic control.Normally, the
rubber roll drops to the working position when paper feeding, and the rubber roll automatically
rises when paper feeding stops.
★Rubber correction mechanism, increase the use number of rubber, reduce consumption.
★The bottom ol the die cutting equipped witha waste paper conveying device, the die cuting paper
scraps to the outside of the equipment,convenient cleaning.
